Stainless Steel 316L

What Is Stainless Steel 316L? Composition & Corrosion Resistance

316L (EN 1.4404, UNS S31603) is the low-carbon, molybdenum-bearing Stainless Steel variant of grade 316, engineered for applications demanding superior resistance to pitting and crevice corrosion in chloride-rich and acidic environments. The addition of 2.0–3.0% molybdenum, combined with carbon restricted to 0.030% max, gives the grade markedly better performance than 304L in marine, chemical processing, and pharmaceutical environments, while also reducing the risk of intergranular corrosion after welding. Chromium content of 16.0–18.0% and nickel content of 10.0–14.0% round out an austenitic structure with excellent ductility, weldability, and long-term corrosion resistance.

316L stainless steel pipe is specified extensively in process piping, chemical transport lines, and pharmaceutical systems where internal corrosion resistance and weld integrity are critical, typically manufactured to standards such as ASTM A312 and A213. Flat-rolled forms serve a different set of industries. 316L stainless steel sheet is used in fabrication, architectural cladding, and equipment manufacturing where consistent surface finish and formability matter most.

For thinner-gauge and general fabrication use, 316L steel sheets are commonly supplied to ASTM A240 and EN 10088-2, covering the tolerance and finish requirements most sheet-metal work calls for. Bar and precision long-product applications - round, hexagon, square, and flat sections used in machining, shafting, and fabrication - call for the same underlying metallurgical discipline as pipe and sheet: controlled melt chemistry, solution annealing, and consistent surface and dimensional quality through every processing stage. This is where premium 316L stainless steel bar stock is expected to perform, and it's the segment Aamor Inox manufactures for.

Aamor Inox produces 316L / 1.4404 bright round bars, cold drawn profiles, and precision ground shafting to these standards, with NADCAP-accredited heat treatment and non-destructive testing backing every batch shipped to customers across 60+ countries.

NADCAP-Accredited Manufacturing & Global Quality Standards

NADCAP-accredited Heat Treatment as well as Non-Destructive Testing (NDT) — a first for an Indian stainless steel bar producer. Click here: why Aerospace & Defence Trust Us

Learn More About Our Manufacturing & Testing Capabilities. Explore:

Ultrasonic Testing - NADCAP accredited
Eddy Current Testing - NADCAP accredited
Precision Straightening
Heat Treatment Facilities - NADCAP accredited
Surface Finishing Capabilities

See Our Global Certifications

Our Product Range in 316L Stainless Steel Bars

With Bright Round Bars processing facilities of 60,000 tons per year, Aamor Inox is one of the largest producers of cold finished bars in India —

Size & Specifications:

Size range: 4 mm – 150 mm (3/16 – 4½ inch) **
Size Tolerances: h9, h10, h11, k12, k13, A-484, EN-10060, DIN-1013 & many more
Length: 1 meter upto 11 meters (upto 36 feet)
Chamfering: Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
Crack Test: Eddy Current Testing thru Circograph (from Dr. Foerster, Germany) and Magnetic Particle Inspection (MPI) Tested
Ultrasonic Test: 100% tested thru Water Immersion based fully-automatic Ultrasonic Testing machine, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B, C), MIL STD 2154

Precision & Finishing:

Length Tolerance: Available in special cut to length bars in tolerance - 0/+2mm (-0 +0.25 inch)
Straightness: Upto 0.25 mm / meter TIR (0.0015 inch / feet)
Surface Finish: Ra value 0.2 um (12 RMS) and 240 & 320 Grit Polished
Heat Treatment: Solution Annealed

See Our Global Certifications

316L / 1.4404 Flat Bars - HRAP & Cold Drawn

Aamor Inox offers the largest range of 316L / 1.4404 Stainless Steel Flat Bars from India

316L HRAP Flat Bars

Aamor Inox's 316L / 1.4404 Stainless Steel Flat Bars are used widely in various Structural & Industrial applications.

Size Range: 20x5mm upto 150x50mm (1"x1/8inch upto 6"x2inch) **please contact us for detailed size range
Size Tolerances: ASTM A-484 and EN-10058
Length: 2 – 7 meters (8 to 24 feet)
Length Tolerance: Available in special cut to length bars in tolerance - 0/+10mm (-0 +0.5 inch)
Surface Finish: HRAP condition
Heat Treatment: Solution Annealed

316L Cold Drawn Flat Bars

Aamor Inox's 316L / 1.4404 offers the largest range of Cold Drawn Flat Bars from India

Size Range: 30x8mm upto 100x30mm **please contact us for detailed size range
Size Tolerances: ISO h11
Length: 3 – 6 meters
Length Tolerance: Available in special cut to length bars in tolerance - 0/+10mm (-0 +0.5 inch)
Surface Finish: Cold Drawn and Polished condition
Heat Treatment: Solution Annealed

316L Cold Drawn Squares & Hexagon Bars

Aamor Inox offers very high-quality “Improved Machining (IM)” stainless steel 316L / 1.4404 Hexagon & Square bars.

Hex size range:	12 mm – 55 mm (1/2 – 2 inch)
Squares size range:	12 mm – 50 mm (1/2 – 2 inch)
Size tolerance	h11
Length	2 – 6 meters (8 to 20 feet)
Chamfering	Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
Ultrasonic Test	100% tested thru Water Immersion based fully-automatic Ultrasonic Testing machine, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B, C), MIL STD 2154
Length Tolerance	Available in special cut to length bars in tolerance – 0/+10mm (-0 +0.5 inch)
Surface Finish	Cold drawn condition, Belt polished condition
Heat Treatment	Solution Annealed

☞ Contact our technical sales team today for complete specifications, grades, and customization options.

316L HRAP Angles

Aamor Inox’s Stainless Steel Angles are used widely in various Structural & Industrial applications.

Size Range	20x20x3mm upto 100x100x10mm \| 3/4”x3/4”x1/8 inch upto 4”x4”x0.375 inch \| please contact us for detailed size range
Size Tolerances	ASTM A-484 and EN-10058
Length	6 meters (20 feet)
Surface Finish	HRAP condition
Heat Treatment	Solution Annealed

316L Piston Rod Quality Bars

Cold worked Precision Piston Rod Bars in grade 316L / 1.4404 are developed for demanding hydraulic and pneumatic applications requiring exceptional straightness, surface finish, dimensional consistency, and corrosion resistance.

These super-finished bars are processed through ultra-modern combined lines and precision finishing equipment to achieve superior surface roughness, close diameter tolerances, and excellent roundness control.

Applications

▸ Hydraulic Cylinder Rods
▸ Pneumatic Cylinder Rods
▸ Valve Shafts
▸ Chrome Plating Quality Bars
▸ Precision Motion Systems
▸ Automation Equipment

Technical Specifications

Size range

6 mm – 100 mm (1/4 – 4 inch)

Size Tolerances

j6, e6, h6, f6, f7, h7, f8, h8, h9, ± of A484 etc

Length

1 meter upto 11 meters (upto 36 feet)

Ovality

Half of diameter tolerance

Heat Treatment

Solution Annealed

Straightness

0.25mm per meter max (0.0015" per feet)

Surface Finish

Ra – 0.2 um / 12 RMS max

Chamfering

Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine

Crack Test

Eddy Current Testing thru Circograph (from Dr. Foerster, Germany) and Magnetic Particle Inspection (MPI)

Ultrasonic Test

100% tested thru Water Immersion based fully-automatic Ultrasonic Testing machine, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B, C), MIL STD 2154

Length Tolerance

Available in special cut to length bars in tolerance - 0/+10mm (-0 +0.5 inch)

Packaging

Packing is done using a variety or protective materials & distance rings, and then placed in the strong plywood boxes to ensure safety of material during transportation.

316L / 1.4404 Pump Shaft Quality Bars (PSQ)

Aamor Inox's 316L / 1.4404 Pump Shaft Quality Bars are engineered for rotating applications where shaft stability, low runout, superior machinability, and long-term reliability are critical.

Widely Used In:

▸ Pump Shafts
▸ Marine Shafts
▸ Rotating Equipment
▸ Mechanical Seals
▸ Fluid Handling Systems
▸ Industrial Drive Systems

These precision shaft bars are manufactured using advanced cold finishing and straightening processes to ensure excellent concentricity, smooth surface finish, and dependable mechanical consistency.

Widely used in — Pump Shafts · Marine Shafts · Rotating Equipment · Mechanical Seals · Fluid Handling Systems · Industrial Drive Systems

Technical Specifications:

▸ Size: 6 mm – 100 mm (1/4 – 4 inch)
▸ Tolerances: j6, e6, h6, f6, f7, h7, f8, h8, h9, ± of A484 etc
▸ Ovality: Half of diameter tolerance
▸ Straightness: 0.25mm per meter max (0.0015" per feet)
▸ Surface Finish: Ra – 0.2 um / 12 RMS max
▸ Length: 1 meter upto 11 meters (upto 36 feet)
▸ Chamfering: Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
▸ Crack Test: Eddy Current Testing thru Circograph (from Dr. Foerster, Germany)
▸ Ultrasonic Test: 100% tested (ASTM A-388, EN 10308, API 6A, SEP 1920, MIL STD 2154)
▸ Length Tolerance: Special cut to length - 0/+10mm (-0 +0.5 inch)
▸ Packaging: Protective materials & distance rings in strong plywood boxes

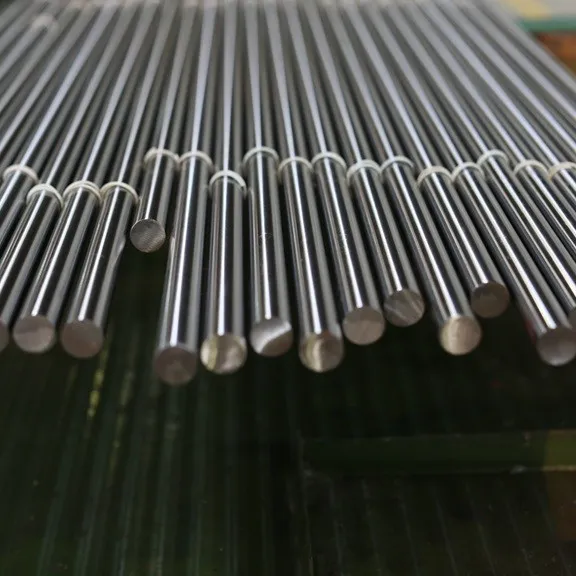

Type 316L Improved Machining Stainless Steels

At Aamor Inox, machinability isn't a bonus — it's a necessity.

With over 20 years of refinement, our stainless steel 316L / 1.4404 Round Bars & CD Hexagons are engineered to machine faster, last longer, and perform better. We maintain tight tolerances, perfect roundness, and superior straightness to meet the demands of high-tech multi-spindle machines like the INDEX MS40.

Plus, our fully automated double-side chamfering line provides precise, customized chamfering (30°, 45°, 60°) with 2-5mm chamfer lengths, making bar feeding even more seamless.

AAMAXr Stainless Type 316L is identical in every way to standard ASTM or DIN grade, except with respect to Machinability.

AAMOR INOX Benefits

This special melting process results in a material providing you following benefits

▸ Increased productivity : Compared with standard ASTM / DIN grades, AAMOR INOX Stainless can greatly improve your competitive edge. It machines smoother with significantly less waste. In case you need to increase the machining rate, it can handle the speed. The result? The processing costs will drop and help you stay competitive.
▸ Better tool life : AAMOR INOX Stainless is simple on your tools. With it, you will need to change tools less frequently as the tools will experience less wear tear and stay sharp longer. Thereby, decreasing your slowdowns with a much greater productivity.
▸ Excellent chip control : AAMOR INOX Stainless accelerates an excellent chip control during the machining of bars. It smoothens the job and allows you more flexibility than ever to meet your production goals while improving your bottom line.

AAMOR INOX Machinability Procedure

With AAMOR INOX Stainless : above results are observed across a wide range of cutting conditions on all types of machined parts. Since aggressive machining produces the most favorable results, increased productivity results automatically.

We ensure that every bar you receive performs flawlessly on the shop floor.

Machinability also depends on many variables in the machining process. Some of the variables that affect the evaluation of Machinability are:

▸ Type of cutting fluid used during the process
▸ Type of machining operation being carried out
▸ Rigidity of tooling or fixtures
▸ Tool material and tool geometry

AAMOR INOX Stainless can provide a significant competitive advantage for shops that demand efficient, high volume and reliable production.

AAMOR INOX® Stainless - Products, Grades & Chemical Analysis

AAMOR INOX® Stainless can provide a significant competitive advantage for shops that demand efficient, high volume and reliable production.

AAMOR INOX ® Stainless : Products Available

Smooth Turned/ Ground & Polished Round Bars
Cold Drawn & Polished Round Bars
Cold Drawn Square & Hexagon Bars

AAMOR INOX ® Stainless : Grades Available

AAMOR INOX ® Stainless Grades	Equivalent AISI Grades
AAMAX® 316L	316L
Equivalent DIN-EN Grades	1.4404
Equivalent German Grades	X2CrNiMo17-13-2

AAMAX® Stainless : Chemical Analysis

Carbon (Max)	Mn (Max)	Phoss (Max)	Sulfur (Max)
0.03	1.80	0.045	0.030

Chrome (Max)	Nickel (Max)	Moly (Max)
16.50 – 17.50	10.00 – 11.00	2.00 – 2.50

Standard	Grade
EN	1.4404
AISI	316L
UNS	S31603
ASTM	316L

Why Customers Choose Aamor Inox

Customers across demanding industries trust Aamor Inox because our manufacturing philosophy focuses on precision, consistency, and long-term reliability.

▸ Tight Chemical Control

Guaranteed alloy composition for consistent, predictable performance.

▸ Superior Machinability

Optimized for faster cutting speeds, extended tool life, and smoother finishes.

▸ Tight Dimensional Tolerances

Ensuring trouble-free machining and minimal rework.

▸ Exceptional Surface Finish

Reducing tool wear while enhancing product aesthetics.

▸ Consistent Mechanical Properties

Batch-to-batch uniformity you can rely on.

▸ Custom Heat Treatment

Tailored hardness and mechanical properties for specific applications.

▸ Full Traceability & Certifications

Meeting international standards including ASTM, EN, DIN, and JIS.

Leading 316L / 1.4404 Stainless Steel Manufacturer & Exporter from India

With a strong focus on dimensional precision, process reliability, surface integrity, and manufacturing consistency, Aamor Inox is a trusted global supplier of premium 316L / 1.4404 stainless steel bars and sections.

Whether the requirement is for precision bright bars, pump shaft quality bars, piston shaft bars, cold drawn profiles, or HRAP sections — we deliver stainless steel products engineered for reliability and long-term performance.
