for Oilfield & High-Strength Rotating Applications

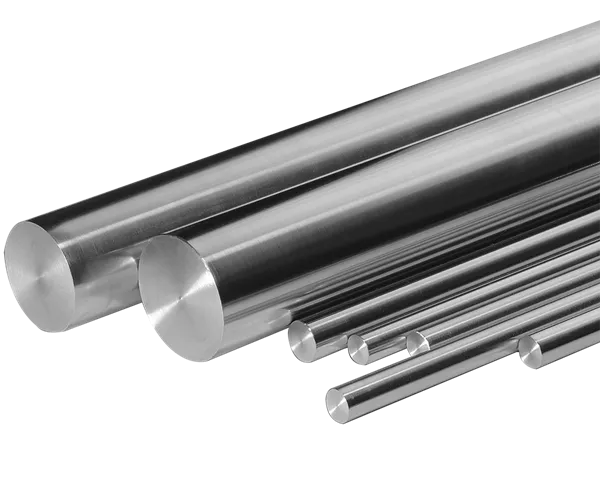

Aamor Inox manufactures premium-quality 17-4PH / 1.4542 Shafting stainless steel bars for demanding Oil & Gas, pump, valve, fluid-control, and precision rotating-equipment industries requiring exceptional shaft stability, dimensional integrity, and dependable long-term mechanical performance.
directly influence equipment performance
At Aamor Inox, Pump Shaft Quality bars are engineered as precision rotating components where running accuracy, dimensional stability, and rotational consistency directly influence long-term equipment performance.
Developed specifically for demanding rotating-equipment applications.
For precision rotating systems, ovality and out-of-roundness control become important for maintaining dependable shaft performance and long-term operational stability.
Aamor Inox is India’s largest producer of Shafting bars.
Our PSQ Bars are more than 8 times straighter than industry standards (ASTM A108), with straightness readings of 0.0015” T.I.R per ft max (up to 0.25 mm / meter). Tight diametrical tolerance achieved through grinding reduces wear, improves roundness consistency, and minimizes vibration throughout the shaft length.
| Grade | C (Max) | Si (Max) | Mn (Max) | Cr | Ni | Cu | Nb + Ta | S (Max) | Ph (Max) | Mo (Max) |
|---|---|---|---|---|---|---|---|---|---|---|
| 17-4 | 0.07 | 1.00 | 1.00 | 15.00–17.50 | 3.00–5.00 | 3.00–5.00 | 0.15 to 0.45 | 0.030 (0.025) | 0.040 (0.030) | - |
| 630 | 0.07 | 1.00 | 1.00 | 15.00–17.50 | 3.00–5.00 | 3.00–5.00 | 0.15 to 0.45 | 0.030 (0.025) | 0.040 (0.030) | - |
| 1.4542 | 0.07 | 0.70 | 1.50 | 15.00–17.50 | 3.00–5.00 | 3.00–5.00 | 5xC to 0.45 | 0.030 (0.025) | 0.040 (0.030) | 0.60 |
| 1.4548 | 0.07 | 1.00 | 1.00 | 15.00–17.50 | 3.00–5.00 | 3.00–5.00 | 0.15 to 0.45 | 0.025 | 0.025 | 0.60 |
* Ph up to 0.025% max can be achieved and supplied as per ASME 5622.
PREN = (%Cr + 3.3% Mo +16% N) ≥ 17
| Type | Standard | Tensile Strength (min) | Yield Strength (min) | Elongation % (Min) | Reduction % (Min) | Hardness | Impact Charpy-V (min) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ksi | MPA | Ksi | MPA | Rockwell C Min | Rockwell C Max | Brinell Min | Brinell Max | Foot/Lbs | Joules | ||||
| Condition A | ASTM A564 | - | - | - | - | - | - | - | 38 | 363 | 363 | - | - |
| H900 | ASTM A564 | 190 | 1310 | 170 | 1170 | 10 | 40 | 40 | - | 388 | - | - | - |
| H925 | ASTM A564 | 170 | 1170 | 155 | 1070 | 10 | 44 | 38 | - | 375 | - | 5 | 6.8 |
| H1025 | ASTM A564 | 155 | 1070 | 145 | 1000 | 12 | 45 | 35 | - | 331 | - | 15 | 20 |
| H1075 | ASTM A564 | 145 | 1000 | 125 | 860 | 13 | 45 | 32 | - | 311 | - | 20 | 27 |
| H1100 | ASTM A564 | 140 | 965 | 115 | 795 | 14 | 45 | 31 | - | 302 | - | 25 | 34 |
| H1150 | ASTM A564 | 135 | 930 | 105 | 725 | 16 | 50 | 28 | - | 277 | - | 30 | 41 |
| H1150M | ASTM A564 | 115 | 795 | 75 | 520 | 18 | 55 | 24 | - | 255 | - | 55 | 75 |
| H1150D | ASTM A564 | 125 | 860 | 105 | 725 | 16 | 50 | 24 | - | 255 | 311 | 30 | 41 |
| Condition AT | EN10088-3 | - | 1200 max | - | - | - | - | - | - | 360 | - | - | - |
| P800 | EN10088-3 | - | 800-950 | - | 520 | 18 | - | - | - | - | - | - | 75 |
| P930 | EN10088-3 | - | 930-1100 | - | 720 | 16 | - | - | - | - | - | - | 40 |
| P960 | EN10088-3 | - | 960-1160 | - | 790 | 12 | - | - | - | - | - | - | - |
| P1070 | EN10088-3 | - | 1070-1270 | - | 1000 | 10 | - | - | - | - | - | - | - |
Our centerless grinding lines comprise state-of-the-art fully automatic machines from Italy, developed specifically for precision shaft grinding applications requiring exceptional dimensional accuracy, surface integrity, and rotational consistency.
17-4PH shaft performance is heavily influenced by ageing consistency and thermal stability. Our fully automatic German-made NADCAP accredited furnaces are developed for precision heat treatment applications requiring dependable dimensional control, mechanical repeatability, and long-term shaft reliability.
For precision shafting products, manufacturing quality alone is not sufficient.
All PSQ bars are developed with a strong emphasis on inspection integrity, internal soundness, dimensional reliability, and repeatable rotating-equipment performance.
Aamor Inox is India’s first stainless steel long-products manufacturer with:
NADCAP-accredited Heat Treatment
as well as:
NADCAP-accredited Non-Destructive Testing (NDT) capabilities
reflecting our strong focus on critical-service engineering applications
For demanding PSQ shafting applications, advanced inspection systems become critically important for:
17-4PH remains one of the most preferred precipitation-hardening stainless steels for high-performance rotating systems because it delivers an excellent balance of mechanical performance, dimensional stability, and dependable long-term reliability.
In high-speed rotating systems, shaft performance is heavily influenced by geometry consistency, dimensional precision, and stable rotational behavior.
Engineered for demanding rotating systems requiring precision shaft stability, dependable fatigue performance, and long-term operational reliability.
Customers across demanding aerospace and Oil & Gas industries trust Aamor Inox because our manufacturing philosophy focuses on:
Precision Ground Shafting Expertise
Controlled Ageing & Heat Treatment
Advanced NDT Systems
Precision Straightening Capability
Superior Surface Finish
Low TIR Shafting Solutions
ASTM / AMS Oriented Manufacturing
Strong Packaging Protection Systems
Batch-to-Batch Repeatability
Full Traceability & Certifications
